G63QI

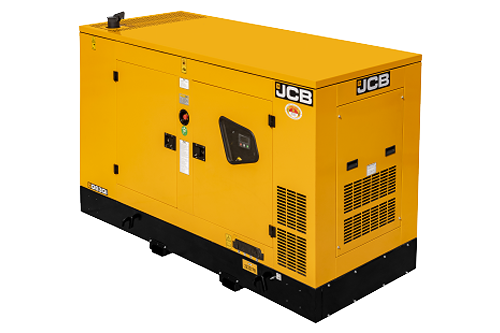

JCB DIESEL GENERATOR TECHNICAL SPECIFICATIONS
| ELECTRICAL | |||
| 50Hz | 415 / 240V | 63kVA / 50.4kW | 69.3kVA / 55.4kW |
| Rated Speed | |||
| Circuit Breaker | |||
| Power Factor / Phase | |||
All ratings to standard reference conditions ISO8528
| ALTERNATOR | |
| Model | Mecc Alte ECP32-2M4C |
| Poles | 4 pole |
| Winding Connections | Star |
| Insulation | Class H |
| Enclosure | IP23 |
| Exciter System | Self-regulating brushless |
| Voltage Regulator | DSRL |
| Steady State Voltage Regulation | +/- 1.0% |
| Bearing | Single bearing sealed |
| Coupling | Flexible disc |
| Cooling | Direct drive centrifugal blower fan |
